For intelligent and specialized cranes
Tonnage: 5, 10, 16, 20, 32, 50, 75, 100, 125, 160
Hook Material: DG20Mn, DG20, 35CrMo, 34Cr2Ni2Mo, 30Cr2Ni2Mo
Pulley Material: Q355B
Pulley Processing: Hot Rolled
Bearing Brands: SKF、FAG、NSK, HRB, WGYS, LYC, OtherBrands
Categories: Hook Blocks

Send Email

Chat Now

Description

Features

Applications

About Weihua

Description：

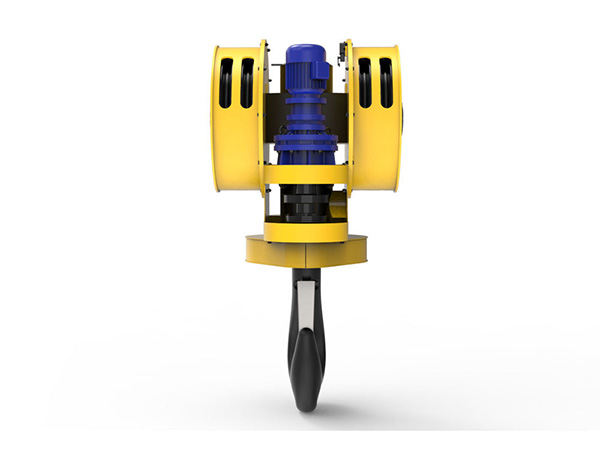

A electric rotating crane hook block serves as an essential piece for attaching loads to a crane or hoist. Its purpose is to securely bear and lift target weights while facilitating effortless attachment and detachment.
Typically made of high-strength steel or alloy, crane hooks are engineered to endure the required weight of lifting jobs. Hooks come in diverse shapes and sizes, tailored to serve different applications and working loads. Safe to say the efficiency and safety of lifting operations are significantly influenced by the selected crane hook parameters.

Parameter

Serial number	Figure No.	Capacity	Size
Serial number	Figure No.	Capacity	A	B	C	L
1	XHDG10	10t	1413	265	870	410
2	XHDG16	16t	1495	330	950	86 - 470 - 86
3	XHDG20	20t	1592	330	1024	86 - 608 - 86
4	XHDG32	32t	1780	390	1100	116 - 500 - 116
5	XHDG40	40t	1913	405	1182	102 - 570 - 102
6	XHDG50	50t	2113	450	1300	102 - 570 - 102
7	XHDG75	75t	3116	1306	1465	166 - 125 - 760 - 125 - 166

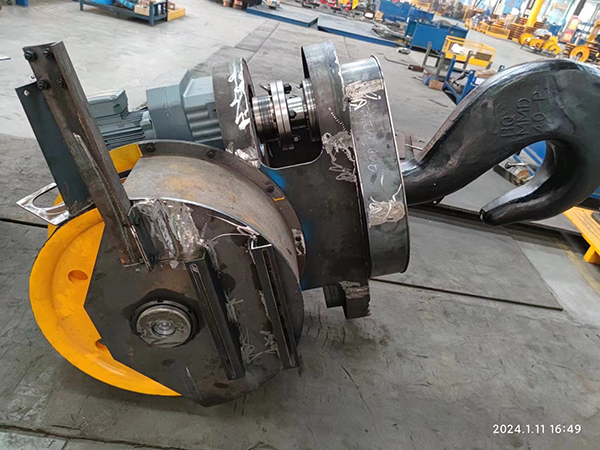

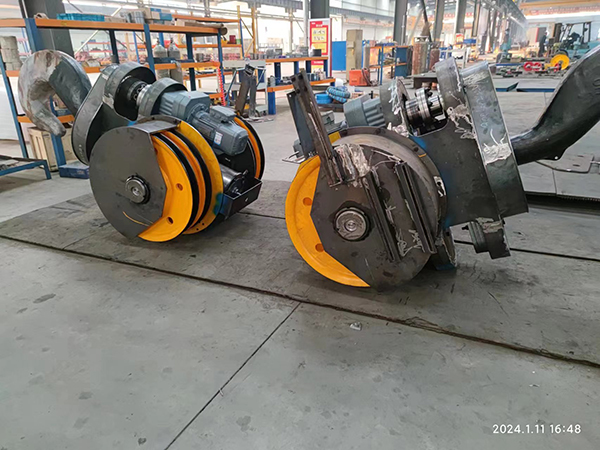

Process Map

Features：

1. Precise Load Positioning
Electric rotating crane hook blocks enables operators to position loads in difficult-to-reach areas without repositioning the crane or using additional equipment.
2. Enhanced Safety
Reduces the risk of manual intervention and the need for personnel near the load.
3. Increased Efficiency
Allows for quicker and more efficient load handling, reducing operational time and costs.
4. Improved Handling
Rotating crane hook blocks handles complex lifting tasks by enabling continuous rotation and horizontal movement of loads.
5. Easier Maintenance
Crane hook blocks components like lubrication fittings and accessible design features facilitate routine maintenance and upkeep.
6. Remote Control and Automation
Can be integrated with the crane's control system, allowing for remote operation and automation of rotation.

Applications：

Weihua crane parts can be applied to various industries such as industrial cranes, construction machinery, mining, metallurgy, chemical industry, aerospace, military and marine. These parts play a key role in lifting operations and can provide strong functions and reliability in various environments.

About Weihua：

Weihua Heavy Machinery Co., Ltd. was founded in 1988. It is a large-scale equipment manufacturing enterprise mainly engaged in the development of bridge and gantry cranes, port machinery, electric hoists, reducers, bulk material conveying equipment, crane parts and other products.

Weihua has won more than 500 honorary titles such as "National Technology Innovation Demonstration Enterprise", "National Torch Program Key High-tech Enterprise", "National Certified Enterprise Technology Center", "National Quality Benchmark", "National Green Factory", and "National Industrial Design Center".

Weihua has 10 series and more than 200 categories of crane production and manufacturing qualifications. The leading products are widely used in machinery, metallurgy, mining, electricity, railways, ports, petroleum, chemical and other industries, serving national key projects such as West-East Gas Transmission, South-to-North Water Diversion, Olympic Projects, Hangzhou Bay Cross-sea Bridge, and thousands of large enterprises such as China Coal, China Shenhua, Sinopec, China Petroleum, Baowu Steel, etc., and are exported to more than 170 countries and regions such as Thailand, Malaysia, and Australia.
