Applied in the driving mechanisms of cranes or other construction machinery
Nominal Dia.: 160, 200, 250, 315, 400, 500, 630
Thread Width: 60, 100, 110, 130, 150

Send Email

Chat Now

Description

Features

Applications

About Weihua

Description：

As integral components within the crane traveling mechanism, Crane Rail Wheels play a pivotal role in various lifting machines, including single-girder overhead cranes, double-girder overhead cranes, gantry cranes, port cranes, and other rail-mounted material handling equipment.
Weihua advanced New Design Crane Wheel Set, engineered for superior load-bearing capacity, smooth operation, and extended service life. Crafted from high-grade alloy steel, these crane wheels ensure exceptional wear resistance and impact strength, even under heavy-duty industrial conditions.
The optimized tread profile minimizes friction, reducing energy consumption while maintaining stable movement. Precision-balanced for noise reduction and vibration control, this crane wheel set guarantees quiet, efficient performance in demanding environments.
With reinforced flanges and heat-treated surfaces, our New Design Crane Wheel Set delivers unmatched reliability for overhead cranes, gantry systems, and material handling equipment. Upgrade to a high-performance wheel solution designed for maximum efficiency and minimal downtime.

Parameter

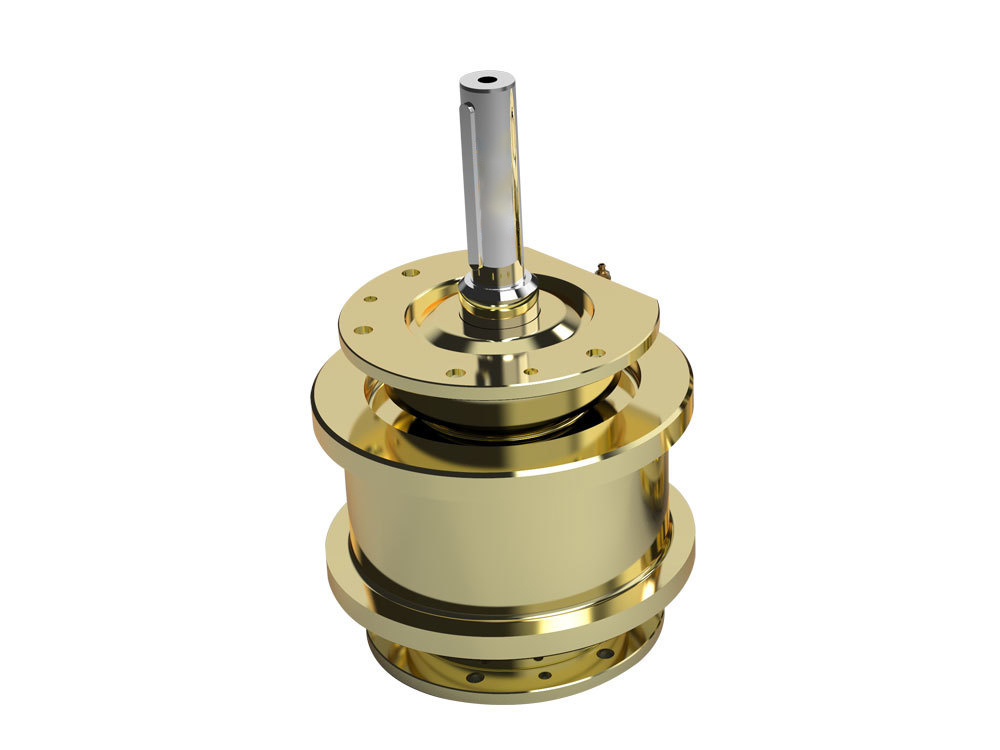

Active Wheel Set

Name	Encoding	D(h9)	D1	d	L	L1	L2	M	B	B1	Ø1	Ø2
Active Wheel Set Φ160	BLW1601	160	190	30	105	93	225	M10	90	60	11	135
Active Wheel SetΦ160	BLW1603	160	190	35	132	93	252	M12	90	60	11	135
Active Wheel Set Φ200	BLW2001	200	230	35	132	117	277	M12	210/160	150/100	12	165
Active Wheel Set Φ200	BLW2003	200	230	40	142	117	287	M16	210/160	150/100	12	165
Active Wheel Set Φ250	BLW2501	250	280	40	142	137	307	M16	210/160	150/100	14	205
Active Wheel Set Φ250	BLW2503	250	280	40	156	137	321	M16	210/160	150/100	14	205
Active Wheel Set Φ250	BLW2504	250	280	50	183	137	348	M16	210/160	150/100	14	205
Active Wheel Set Φ250	BLW2505	250	280	60	210	137	375	M20	210/160	150/100	14	205
Active Wheel Set Φ315	BLW3151	315	355	40	156	146	366	M16	210/160	150/100	14	260
Active Wheel Set Φ315	BLW3153	315	355	50	183	146	368	M16	210/160	150/100	14	260
Active Wheel Set Φ315	BLW3154	315	355	60	210	146	395	M20	210/160	150/100	14	260
Active Wheel Set Φ315	BLW3155	315	355	70	270	146	480	M20	210/160	150/100	14	260
Active Wheel Set Φ400	BLW4001	400	440	50	183	180	405	M16	210/160	150/100	18	320
Active Wheel Set Φ400	BLW4003	400	440	60	210	180	432	M20	210/160	150/100	18	320
Active Wheel Set Φ400	BLW4004	400	440	70	270	180	492	M20	210/160	150/100	18	320
Active Wheel Set Φ400	BLW4005	400	440	90	313	180	535	M24	210/160	150/100	18	320
Active Wheel Set Φ500	BLW5001	500	540	60	210	210	462	M20	210/160	150/100	22	380
Active Wheel Set Φ500	BLW5003	500	540	70	270	210	522	M20	210/160	150/100	22	380
Active Wheel Set Φ500	BLW5004	500	540	90	313	210	565	M24	210/160	150/100	22	380
Active Wheel Set Φ500	BLW5005	500	540	100	373	210	625	M24	210/160	150/100	22	380
Active Wheel Set Φ630	BLW6301	630	680	70	270	230	542	M20	210/160	150/100	22	430
Active Wheel Set Φ630	BLW6303	630	680	90	313	230	585	M24	210/160	150/100	22	430
Active Wheel Set Φ630	BLW6304	630	680	100	373	230	645	M24	210/160	150/100	22	430
Active Wheel Set Φ630	BLW6305	630	680	120	460	230	732	M24	210/160	150/100	22	430

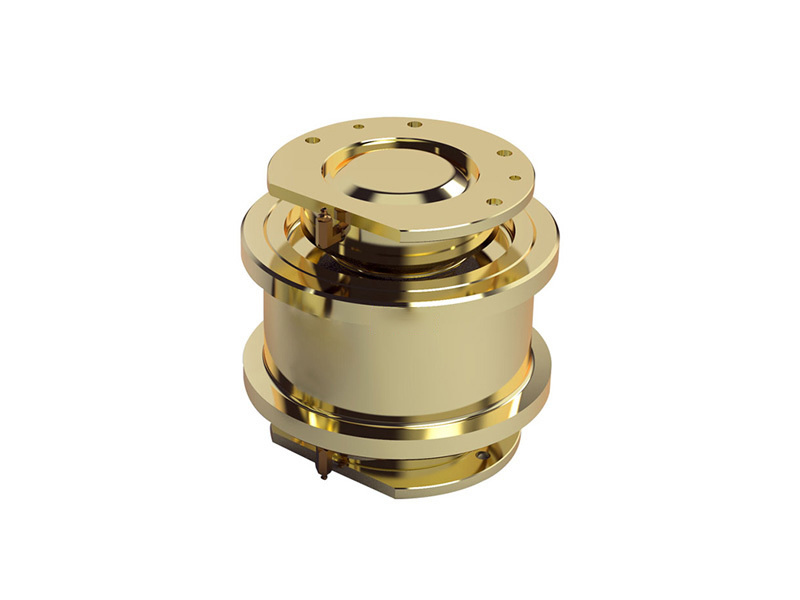

Passive Wheel Set

Name	Encoding	D(h9)	D1	L1	L1	M	B	B1	Ø1	Ø2
Passive Wheel Set Φ160	BLW1602	160	190	93	93	M10	58 - B9 - 90	60	11	135
Passive Wheel Set Φ200	BLW2002	200	230	117	117	M12	210/160	150/100	12	165
Passive Wheel Set Φ250	BLW2502	250	280	137	137	M16	210/160	150/100	14	205
Passive Wheel Set Φ315	BLW3152	315	355	146	146	M16	210/160	150/100	14	260
Passive Wheel Set Φ400	BLW4002	400	440	180	180	M16	210/160	150/100	18	320
Passive Wheel Set Φ500	BLW5002	500	540	210	210	M20	210/160	150/100	22	380
Passive Wheel Set Φ630	BLW6302	630	680	230	230	M20	210/160	150/100	22	430

Process Map

Features：

1. These crane wheels come in a range of configurations, encompassing single-flange wheels, double-flange wheels, and other specialized nonstandard designs. The materials used in the construction of these wheels include 2CrMo4, ZG340-640, ZG50SiMn, 65Mn, 42Cr, etc., and more.
2. We employ diverse techniques tailored to the specific materials, expertly controlling the quenching and tempering temperatures to achieve the desired metallographic structure and optimal mechanical properties.
3. Crane wheel with wide range of applications
High quality crane wheels can be applied to bridge cranes, gantry cranes, port cranes, etc.

Applications：

Weihua crane parts can be applied to various industries such as industrial cranes, construction machinery, mining, metallurgy, chemical industry, aerospace, military and marine. These parts play a key role in lifting operations and can provide strong functions and reliability in various environments.

About Weihua：

Weihua Heavy Machinery Co., Ltd. was founded in 1988. It is a large-scale equipment manufacturing enterprise mainly engaged in the development of bridge and gantry cranes, port machinery, electric hoists, reducers, bulk material conveying equipment, crane parts and other products.
Weihua has won more than 500 honorary titles such as "National Technology Innovation Demonstration Enterprise", "National Torch Program Key High-tech Enterprise", "National Certified Enterprise Technology Center", "National Quality Benchmark", "National Green Factory", and "National Industrial Design Center".
Weihua has 10 series and more than 200 categories of crane production and manufacturing qualifications. The leading products are widely used in machinery, metallurgy, mining, electricity, railways, ports, petroleum, chemical and other industries, serving national key projects such as West-East Gas Transmission, South-to-North Water Diversion, Olympic Projects, Hangzhou Bay Cross-sea Bridge, and thousands of large enterprises such as China Coal, China Shenhua, Sinopec, China Petroleum, Baowu Steel, etc., and are exported to more than 170 countries and regions such as Thailand, Malaysia, and Australia.
