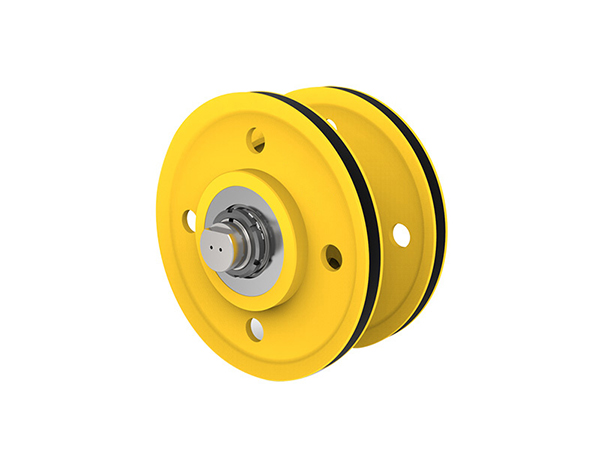

A pulley block is made up of a number of fixed and movable pulleys matched together for the purpose of both saving force and changing the direction of force action. The amount of force saved and the way the rope is wound are determined by the use of the pulley block. The moving pulley is carried by two ropes, i.e. each rope carries the object and the moving pulley.
Parameter
| No. | Drawing No. | Tonnage | Size - Pulley Diameter d/D | Size - Shaft Length L | Size - Magnification | Size - pulley blade spacing L1 |
| 1 | G858B | 5t | Ø250/Ø300 | 130 | 2 | - |
| 2 | G859B | 10t | Ø400/Ø450 | 310 | 3 | 84 |
| 3 | G860B | 16t | Ø500/Ø565 | 376 | 3 | 140 |
| 4 | G861B | 20t | Ø500/Ø565、Ø300/Ø360 | 470 | 4 | 92、92 |
| 5 | G862B | 32t | Ø610/Ø680、Ø400/Ø470 | 526 | 4 | 130、130 |
| 6 | G863B | 50t | Ø710/Ø785 | 555 | 5 | 104、104、104 |
Reasonable structure, high strength, lightweight, and flexible rotation
Weihua crane parts can be applied to various industries such as industrial cranes, construction machinery, mining, metallurgy, chemical industry, aerospace, military and marine. These parts play a key role in lifting operations and can provide strong functions and reliability in various environments.
Weihua Heavy Machinery Co., Ltd. was founded in 1988. It is a large-scale equipment manufacturing enterprise mainly engaged in the development of bridge and gantry cranes, port machinery, electric hoists, reducers, bulk material conveying equipment, crane parts and other products.
Weihua has won more than 500 honorary titles such as "National Technology Innovation Demonstration Enterprise", "National Torch Program Key High-tech Enterprise", "National Certified Enterprise Technology Center", "National Quality Benchmark", "National Green Factory", and "National Industrial Design Center".
Weihua has 10 series and more than 200 categories of crane production and manufacturing qualifications. The leading products are widely used in machinery, metallurgy, mining, electricity, railways, ports, petroleum, chemical and other industries, serving national key projects such as West-East Gas Transmission, South-to-North Water Diversion, Olympic Projects, Hangzhou Bay Cross-sea Bridge, and thousands of large enterprises such as China Coal, China Shenhua, Sinopec, China Petroleum, Baowu Steel, etc., and are exported to more than 170 countries and regions such as Thailand, Malaysia, and Australia.
