| Item | QDY |
| Loading capacity | 5 ~ 75 ton |
| Lifting height | Customized |
| Lifting speed | Varies with lifting capacity |
| Span | 10.5 ~ 31.5 m |
| Lifting mechanism | Winch trolley |
| Working class | A7/A8 |
| Working temperature | -20 ~ +60 ℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-36 / 48V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Cabin, wireless remote, pendant push button |
| Safety device | Buffer,current overload protection,overload device, power failure protection |
| Application area | Factory, workshop, warehouse, power station, logstic,etc. |
| Painting color | Yellow, Red or Customzied |
Metallurgy overhead cranespecializes in heavy loadpracticalapplications in metallurgical industries. It is particularly for handling molten metal, hot steel, and other high-temperature materials.

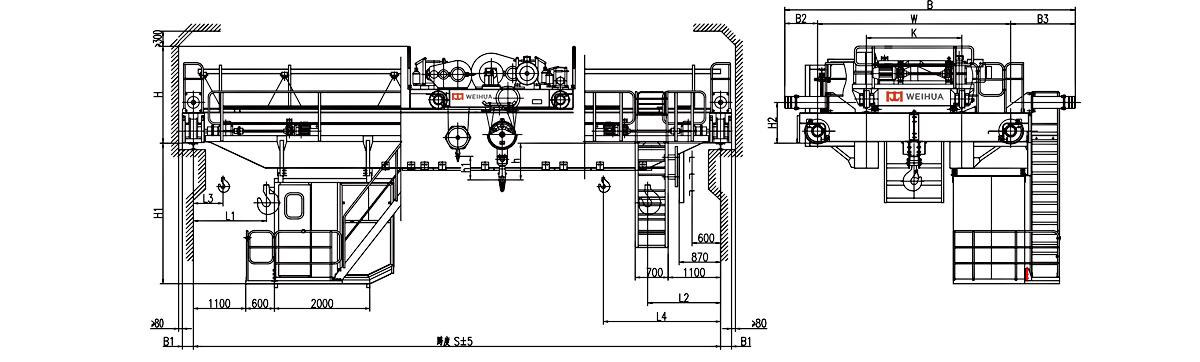

Overall structure can be divided into double girders withdoubletracks, four grinderswithfourtracks, fourbeamswith six tracksand other types. The formertwo are generally for large tonnage cranes, and the thirdoneis for foundry cranes large tonnage.Hoisting mechamisn is electric trolley with multiple brakes for reliablelifting capability and safety. With heat radiation reflectors, metallurgy bridge crane have great heat resistance and performance in hot circumstances. In addition, weoffer the followingoptional features: rotary spreader, fixablegantry hook, cargoweighing and display.
Weihuahas gradually expanded the solutions to various scenarios in the steel industry. We integrate the feeding and storage system with various processing lines via AICrane system. This enables data interchange, and planning operations, production workshops and factories can better control work rhythms, significantly improving operational efficiency.
Application

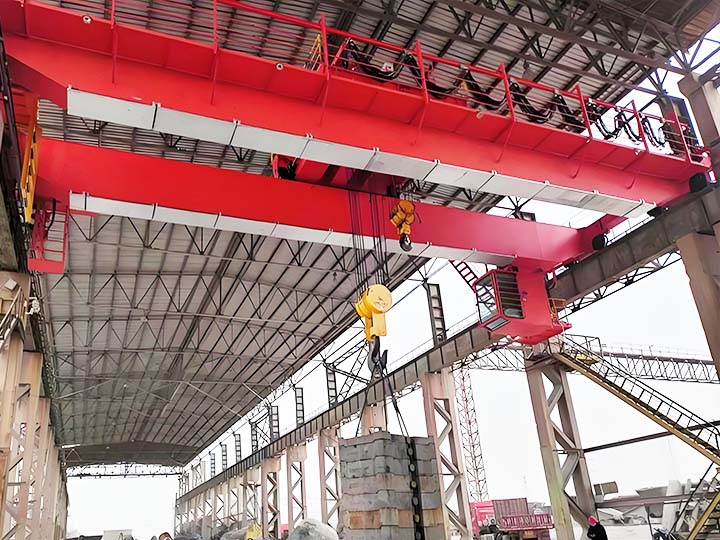

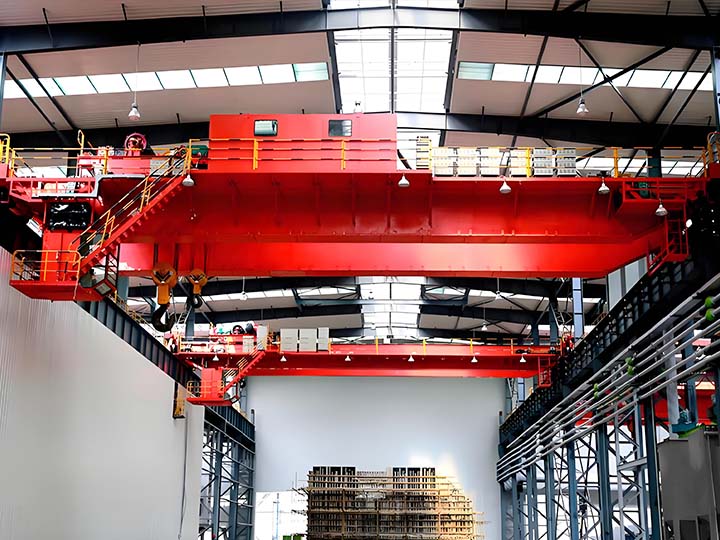

As the main equipment of steelmaking and continuous casting process,metallurgy overhead craneis mainly in steelmaking workshops to lift and transport liquid steel ladlesnearrefining furnaces or continuous casting machines. It is also applicable to foundries for handling meltedmetal and other high-temperature materials.
FeaturesSafety and stability: Equipped with overload protection, anti-collision device, limit switch, etc., to ensure the safety of operation. At the same time, the bridge structure and sturdy manufacturing process keep it stable during operation.Flexibility and precise control: Withmulti-axis control and variable frequency speed regulation functions, making the operation more flexible and precise, and adapting to different operating requirements.Adapt to harsh environment: Due to its ability to work in harsh environments with high temperature, high dust and harmful gases, QDY metallurgical crane has the characteristics of heat insulation, dust prevention and corrosion resistance, and is suitable for long-term stable operation under the harsh conditions of the metallurgical industry.
